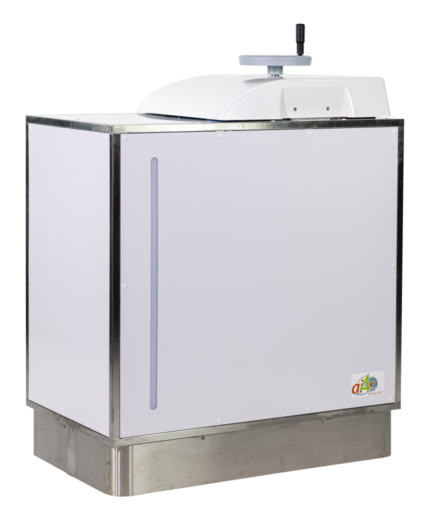

The BeaQuant is the first autoradiograph to be simultaneously a beta particles imager and an alpha imager.

Our machine is polyvalent: our customers have the options of using the BeaQuant for either standard autoradiography or Quantitative Whole-Body Autoradiography (QWBA).

Our alpha/beta imaging device can also be used with high energy radioisotopes or low energy radioisotopes without losing any resolution. Two different models of sample holders are available depending on isotope for standard microscope slides (75×25 or 75×50), or large samples (QWBA,TLC plates… : 20 cm x 20 cm or 10 cm x 10 cm) or custom sized samples.

• Direct gaseous counter
• All radioisotopes markers acceptable
• Spatial: Alpha 20 µm – Beta 20 µm – High energy beta or beta plus 50 µm
• Linearity over 5 orders of magnitude
• Sensitivity: 0.0005 cpm/ mm²
• The image direct represent the number of disintegrations
